Length calculations may be obtained for any line segment, polygon side or vector. Distance calculations are available between two points, or the perpendicular distance between a point and a line, segment, polygon side, or vector. Use these steps:
- Select
the line segment, or point and line, or pair of points as described above. - Click the tab to switch from Real to Symbolic output or vice versa.

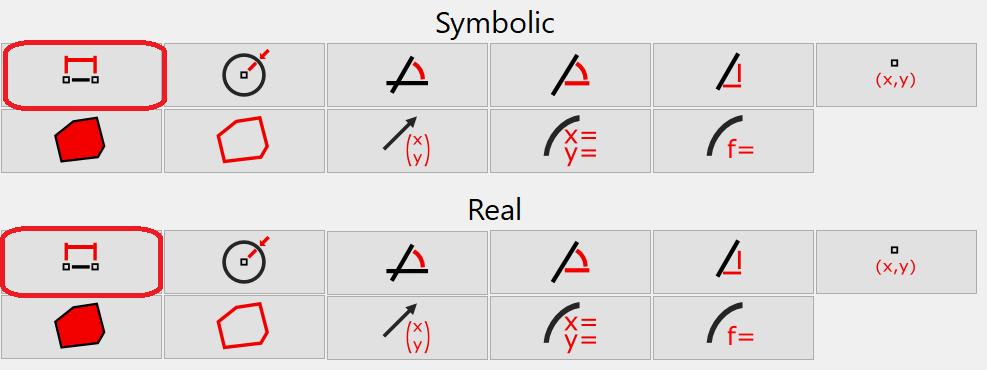

- Click the Distance / Length tool in the Calculate toolbox or select Distance / Length from the Calculate menu.
Mechanical Expressions displays the length, using any relevant parameters you may have specified.
