The Selection Arrow

Top  Previous  Next

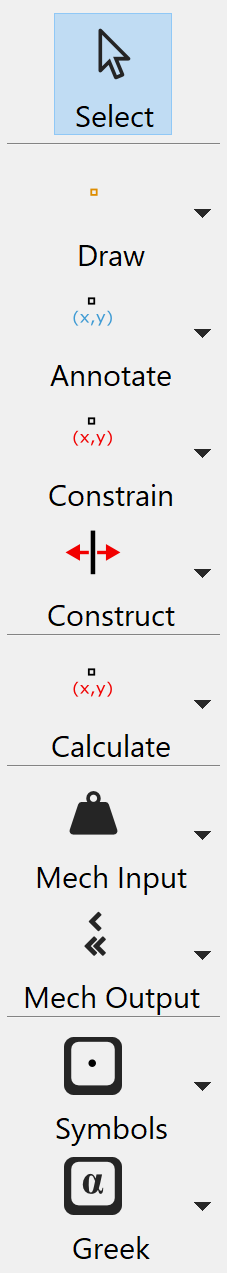

Tool panel

When you are finished with the drawing functions, click the selection arrow select  (or press [Esc] key on the computer keyboard) to enable other functions or adjust your drawing.

With the arrow, you must first select elements of the drawing in order to enter constraints and constructions and to output calculations.

Many of the tools require you to select multiple objects.
