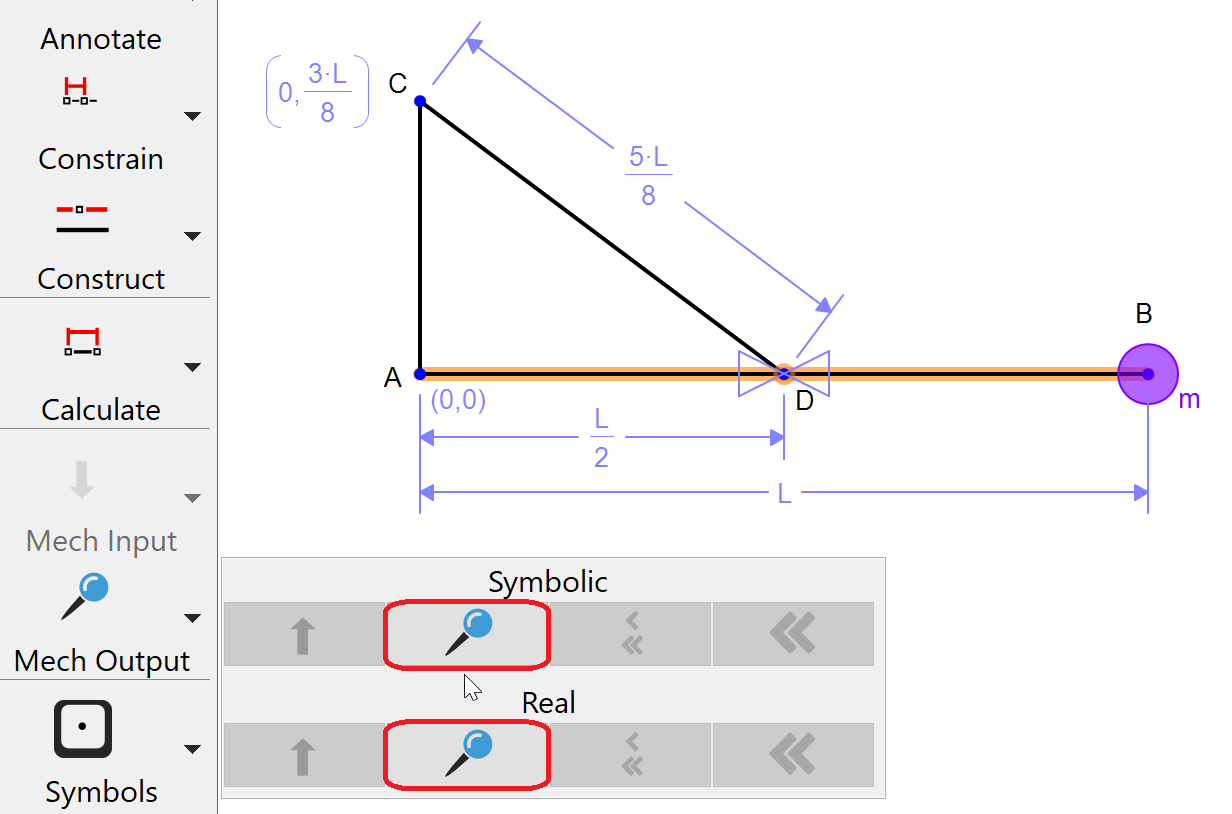

To see the reaction force on a pin, select the pin and its line segment - the member it attaches. In the example below, we calculate the reaction force on pin A viewed as part of the member AB:
- Holding down the shift key, select point A and line AB
- Select Mechanics Output / Pin Reaction
