Measure the velocity and acceleration of points and lines.
- select a point or line or the measurement of a distance or angle to get the relative velocity
- click the Velocity - Acceleration icon in the Mechanics Output toolbox

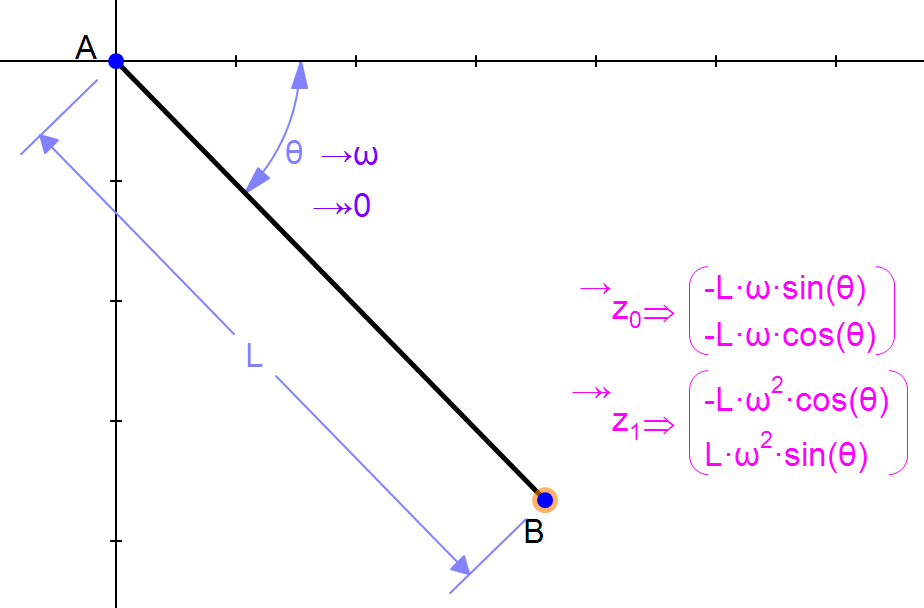

The pendulum in the example below has an angular input velocity, ω. The resultant velocity and acceleration of point B is displayed.
